Based in Malaysia, Silver Circuits offers specializes in PCB prototype and low volume PCB production. Our services offer high level of customization to suit all price and requirements. We differentiate  ourselves with our competitors with these key features.

  • Quality workmanship
  • Low international shipping rates
  • Highly competitive rates
  • Panelizing supported!
  • Personalized Service
  • 24 hour sales & support
  • 0.062" FR4 with 1 oz copper
  • Double sided Soldermask
  • Component Side Silkscreen
  • Plated Through hole
  • 500 holes, 10 tool size limit
  • Immersion Silver surface finishing.
  • Single design panelizing allowed

Single/Double Layer - 3-4 working day

Size 1 2 3 4
5.5"x4.0" $40 $50 $65 $80
6.3"x4.0" $52 $62 $79 $96
4.0"x11" $70 $90 $115 $130
8.0"x5.5" $70 $90 $115 $130

TFour Layer Rates - 5 working day

Size 1 2 3 4
5.5"x4.0" $75 $90 $110 $130
6.3"x4.0" $85 $104 $128 $150
4.0"x11" $110 $145 $185 $225
8.0"x5.5" $110 $145 $185 $225

*All rates in US Dollars

Options

Feature Add
CNC Routing (details) $ 20.00
Bottom Silkscreen $ 20.00
1 day rush (1 or 2 layers) $ 30.00
2 day rush (4 layers) $60.00


  • 11.0"x8.0" setup area
  • 0.062" FR4 with 1 oz copper
  • Available for Single, Double , Four and Six Layers
  • Plated Through hole
  • 2000 holes, 10 tool size limit
  • Immersion Silver surface finishing.
  • Single or Multiple design panelizing allowed

Rates (US Dollars)

  Layers
Panels One Two Four Six
2  $58 $78 $128 $168
4 $88 $128 $204 $272
6 $108 $168 $272 $374
8 $124 $204 $340 $476
10 $138 $238 $408 $578
>10 $7 +$17 +$34 +$51
>50 $5 +$12 $28 +$43

*All rates in US Dollars

Lead time 2-10 panels - 1 week. 11-50 panels - 2 weeks. For more than 50 panels, the lead would be be quoted.

Options

Feature Setup Panel
Soldermask $ 30 $ 8
Silkscreen $ 30 $ 3
Silkscreen (2 sides) $ 45 $ 6
CNC Routing (details) $ 20
1 day rush (1/2 L)   $20
2 days rush (4/6 L)   $40
2 oz Copper   $20
3 oz Copper   $30









News & Offers

Manufacturing Sample Available.  Production sample is available for customer's evaluation . To request for a free sample, please click here.






Design Rules
  mm mils
Minimum trace-to-trace spacing 0.2 8
Minimum trace width 0.2 8
Minimum Drill Size 0.6 24
Minimum Annular Ring 0.2 8
Maximum plated hole 3.3 130
Largest Drilled Hole 5.1 200
Minimum silkscreen line width 0.2 8
Soldermask-to-pad clearance 0.1 4


CAD Support Details & Files
CadSoft EAGLE Instructions
Orcad Layout Instructions
Protel SE / DXP Instructions
Gerber & Excellon Instructions

Drilling/Miling Details

Available Drill Sizes - 16 mils to 152 mil in 4 mil increments.

Large holes - all drills exceeding 200 mils will be routed out. Routed holes will not be hole plated. Surcharge may apply for routed holes.

Size matching - all drills that is not exact match will be rounded up to the next larger size. For example, 34 mil hole will be drilled 36 mil.

Plated Hole Size - all drill size submitted to us will be the final hole size. We will do necessary calculation to compensate for hole size  reduction from through hole plating

Routing - all routing will be done with 60 mil routing tool.This will also result in internal right angle with turn on 30 mil radius.

Exceeding Hole or Tool Count - when exceeding the promised hole count or number of size used, additional surcharge is applicable.

Copyright 2007 PCB Inc.

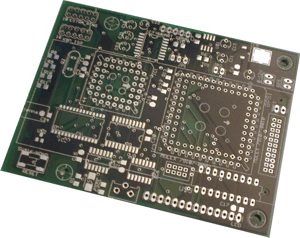

PCB with OSP surface finishing
